Time Recording Terminal
 |
ET3100 (BIOFLEX) | ||
| Fingerprint Time Clock | |||

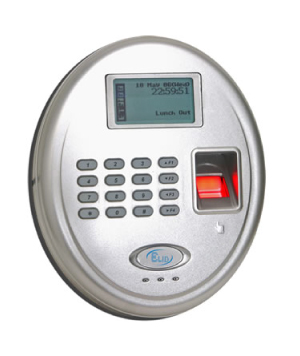

| ET3100 Bioflex is a reliable, user-friendly and cost-effective Optical Fingerprint Recognition Time Recording Terminal. | |||
 |
Scanner type: Optical fingerprint scanner (500 dpi) | ||
|
False Rejection Rate: 1.4% | ||
|
False Acceptance Rate: 0.00001% | ||
|
Storage capacity: Stores up to 9,000 fingerprint templates and 30,000 offline transactions | ||
|
Identification Time: Average 1 second for 1,000 fingerprints | ||
|
Enables enrollment of up to 10 fingerprints for each user | ||
|
Verification mode: Fingerprint only (1:N), ID only, ID+ Fingerprint (1:1), ID + PIN | ||
|
Display type: 128x64 pixels with backlit LCD display | ||
|
Fast verification time; suitable and effective for office or factory environment | ||
|

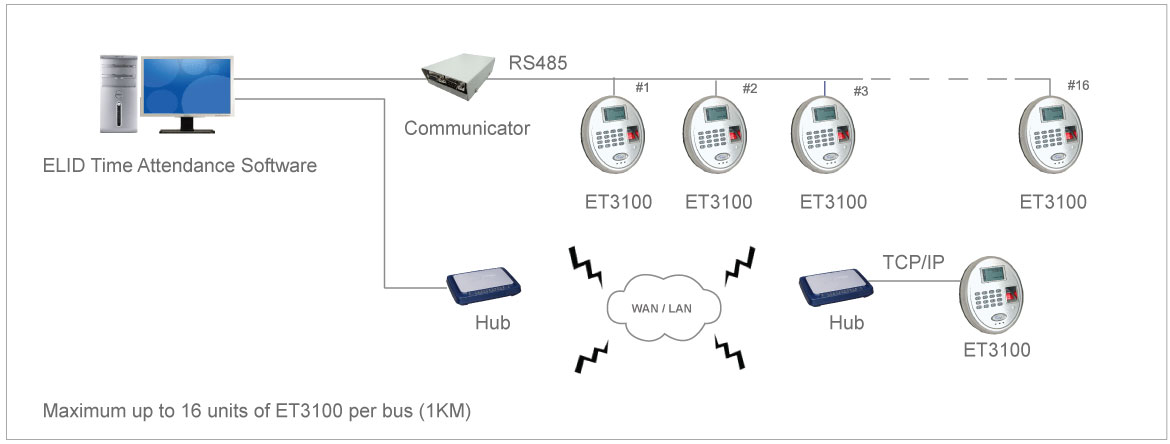

Communication interface: RS485 or LAN | ||
|
Dimensions: 180(H) x 150(W) x 50(D) mm | ||
 Download Brochure |
|||
Specification
| Communication Interface | RS485, LAN (requires additional LAN module) |
| Fingerprint Scanner | Optical, 500dpi |
| False Rejection Rate | 1.40% |
| False Acceptable Rate | 0.00001% |
| Power Supply | 12 VDC |
| Template Database | 9,000 |
| Transaction Database | 30,000 |
| Card Format | Wiegand 26-bit, Free Wiegand |
| Verification Mode | Fingerprint only (1:N), ID only, ID+ Fingerprint (1:1), ID + PIN |
| Identification Time | Average 1 second for 1000 fingerprints |
| Enrollment | Max 10 fingerprints enrollment per user |
| Session | 9 |
| Job Code | 999 |
| Time Zone for Sounder | 1 |
| Timer for Time Zone | 4 |
| Time for Sounder | 18 |
| Holiday | 40 |
Ordering Information
| Product Code | Description |
| Time Clock | |
| ET3100001 | ET3100 Fingerprint Time Recording Terminal |
| ET3100L01 | ET3100/L Fingerprint Time Recording Terminal, built-in with LAN Module |
|
ET3100LE1
|
ET3100/LE Fingerprint Time Recording Terminal, built-in with LAN Module & EM Reader Module |
| Converter/ Communicator |
|
|
EL070S001
|
EL70S Converter, RS485 to USB |
|
EL070Q001
|
EL70Q Communicator, Multidrop/RS485 to USB |
