Time Recording Terminal

ET636 p   ET636
  Time Clock
  ET636 is an user-friendly time recording terminal with a built-in card reader, graphical display and keypad that is housed in a plastic casing. ET636 is directly plugged into the PC via USB cable for data polling and power supply.
  orange button4 Storage capacity: Stores up to 6,000 offline transactions and 500 6-digit card ID numbers
  orange button4 Keypad type: 4x4 matrix membrane keypad with feather-touch keys
  orange button4 Display type: 128x64 pixels graphical backlit LCD
  orange button4 Built-in card reader module (EM/Mifare/HID, depending on the typeof card reader used)
  orange button4 Built-in calendar clock with on-board back-up battery
  orange button4 Can integrate with third party software
  orange button4 Communication interface: USB
  orange button4 Dimensions: 135(H) x 100(W) x 32(D) mm
  download1 Download Brochure


Specification

Communication Interface USB
Card Database 500
Transaction Database 6,000
Card Format Wiegand 26-bit, Free Wiegand
Session 1
Job Code 99
Time Zone for Sounder 1
Timer for Sounder 7
Time per Timer 30
Holiday 40

Configuration

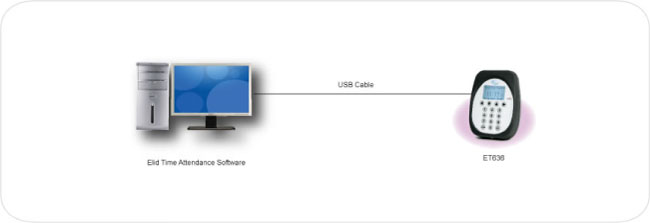

ET636 System Configuration
configuration ET363

Ordering Information

Product Code Description
ET0636001 ET636/E (ELID EM format) with Stand (USB Communication), Chronos Software, 10 EM Proximity Cards & USB Cable
ET0636M01 ET636/MF (Mifare format) with Stand (USB Communication), Chronos Software, 10 Mifare Cards & USB Cable
ET0636H01
 ET636/H (HID format ) with Stand (USB Communication), Chronos Software, 10 HID Proximity Cards & USB Cable
