MIFARE Reader
 |
ER928 | |
| MIFARE Smart Card Reader | ||
| ER928 is a ELID Mifare® Contactless Smart Card reader with built-in antenna. ER928 interfaces with external equipment via Wiegand signals. The plastic housing is designed to match with EK9S Keypad. | ||
 Reading range: 1 - 5cm |
||
| Power consumption: 12V / 150 mA |
||
| RF frequency: 13.56 Mhz |
||
| Output format: Wiegand, Free Wiegand |
||
| Dimensions: 110(H) x 44(W) x 35(D) mm |
 |
ER728 | |
| MIFARE Smart Card Reader | ||
| The ER728 is a high-performance ELID Mifare® Contactless Smart Card reader that is suitable for both indoor and outdoor applications. It is powered by ELID’s robust and reliable reader technology and is compatible with all ELID access controllers. The ER728 proximity card reader is the perfect complement to the EK748 reader with touch sense keypad. | ||
| Reading range: 1 - 5cm |
||
| Power consumption: 12V / 150mA |
||
| RF frequency: 13.56 Mhz |
||
| Output format: Wiegand, Free Wiegand |
||
| Dimensions: 100(H)x45(W)x15(D) mm |
 |

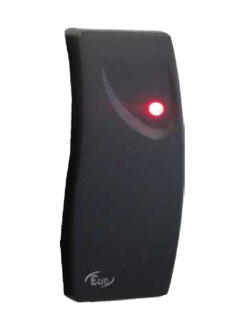

ER930 | |
| MIFARE Secure + Smart Card Reader | ||
| ER930 is a Mifare® Contactless Card Reader with USB 2.0 connectivity. It is designed with a new encrypted "Secure+” card format that will defeat most card-cloning attempts. It supports Mifare® Classic 1K (S50) Cards and USB keyboard output as well as Virtual COM port output. | ||
| Reading range: 3 - 5cm |
||
| Power consumption: 12V / 150mA |
||
| RF frequency: 13.56 Mhz |
||
| Output format: Free Wiegand 32-bit |
||
| Dimensions: 110(H)x44(W)x35(D) mm |
