Access Controller
 |
EL3000S | ||
| Fingerprint Controller | |||
|

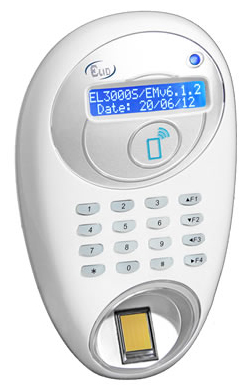

EL3000S Fingerflex Controller combines access controller, card reader and fingerprint recognition all-in-one compact and unique system designed after the shape of a human thumb. |
|||
 |
Scanner: Capacitive sensor. It provides accurate fingerprint recognition without being affected by skin | ||
| texture and condition | |||
|
Storage capacity: Stores up to 9,000 fingerprint templates and 40,000 offline transactions | ||
|
Display and keypad: 2x16-character backlit LCD display and 16-key keypad | ||
|
Built-in card reader module (EM/Mifare, depending on the type of card reader used) | ||
|
Highly accurate fingerprint recognition | ||
|
Fast verification time; suitable and effective for office or clean working environment | ||
|
Multiple verification mode | ||
|
Caters for timers and time zones, limiting access and users to different times of the day | ||
|
Provision for Anti-passback, Automatic Lock Release Time Zone and Automatic PIN Disable Time Zone | ||
|
Optional EZ5 Remote Relay Module for added security whereby inputs and outputs are embedded on a | ||
| separate module placed in a secure area | |||
|
Simple programming set-up and enrollment with scroll-down menu within the controller | ||
|
Firmware can be updated in-circuit, through the serial download from the PC | ||
|
Equipped with a calendar clock chip to give an accurate date and time | ||
|
Battery back-up for internal data storage and time clock | ||
|

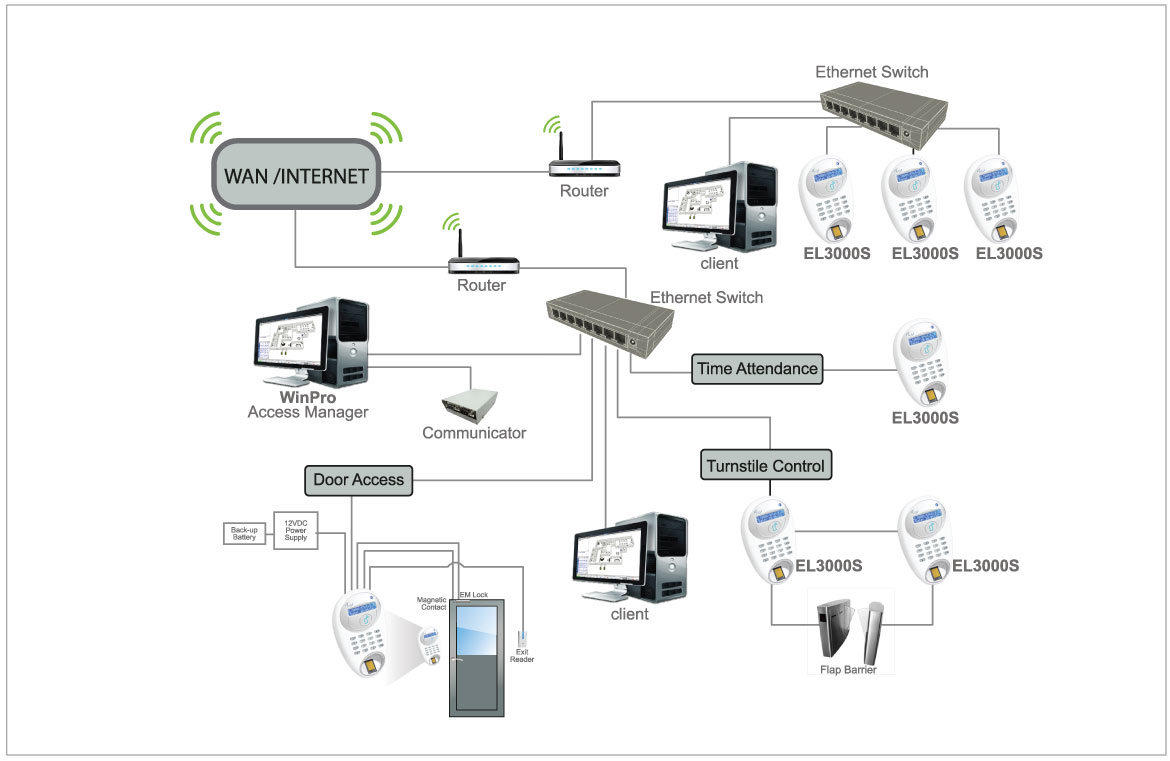

Communication interface: RS485 or TCP/IP | ||
|
Dimensions: 190(H) x 120(W) x 50(D) mm | ||
 Download Brochure |
|||
Specification
| Communication Interface | RS485 (3-wire) or TCP/IP (with LAN module) |
| Output | 1 (On-board), 2 (with EZ5) |
| Input | 2 (On-board), 3 (with EZ5) |
| Power Supply | 12 VDC |
| Current Consumption | 300 mA |
| Fingerprint Sensor | Capacitive |
| False Rejection Rate | 1.4% |
| False Acceptance Rate | 0.00001% |
| Fingerprint Template Database | 9,000 |
| User Database | 10,000 |
| Transaction Database | 40,000 |
| Data Retention During A Total Power Loss | 7 days |
| Card Format | Wiegand 26-bit, Free Wiegand |
| Access Mode | ID, ID + PIN, Finger (1:N, 1:1) |
| Verification Time | Average 1 second for 1,000 templates |
| Enrolment | Maximum 10 templates per user |
| User-define Pin | Yes |
| Time Zone | 10 |
| Timer | 24 |
| Holiday | 20 |
| Adjustable Lock Release Time | Yes |
| Permanent Lock Release | Yes |
| Automatic Pin Disable Time Zone | Yes |
| Automatic Lock Release Time Zone | Yes |
| Ignore Exit Time Zone | Yes/No |
| Inhibit Access | Yes |
| Continuous Swiping | Yes/No |
| Anti-Passback | By reader/timer |
| Dual ID | Yes |
| Interlock | Yes |
Ordering Information
| Product Code | Description |
| Controller Unit | |
| EL3000E01 | EL3000S/EM Fingerflex Biometric Access System, built-in with EM Reader in Plastic Housing (w/o LAN Module & EZ5) |
| EL3000M01 | EL3000S/MF Fingerflex Biometric Access System, built-in with Mifare Reader in Plastic Housing (w/o LAN Module & EZ5) |
| EATCPMG04 | EA79X LAN Module, Support 100M |
| EDZ005M02D | EZ5 Remote Relay - DIN mount |
| Accessories | |
|
EP0042003
|
EP42S Power Supply, 12V/4.2A Switching c/w PS2D Low Volt Cut-off |
|
CS1056DX
|
Metal Casing with DIN Rails for Accessories & PSU - 256(H)x285(W)x74(D) mm
|
| Converter/ Communicator |
|
| EL070S001 | EL70S Converter, RS485 to USB |
|
EL070Q001
|
EL70Q Communicator, Multidrop/RS485 to USB |
