Access Controller
 |
EL1335D | ||
| Single-door Access Controller | |||
| EL1335D is a single-door networkable access controller. EL1335D replaces the popular EL1330 and has a top face plate that gives protection to the electronics. Unlike EL1330, EL1335D has communication hardware settings, and all low-level parameters can be set through E.Win or WinPro. EL1335D offers a wide choice of communication modes with PC, namely, RS485, ELID proprietary Multi-drop and TCP/IP | |||
 |
Storage capacity: Stores up to 3,000 user-IDs and 2,000 offline transactions | ||
|
Reader type: Supports various types of reader such as EM/HID Proximity, Mifare Contactless | ||
| Smart Card reader and Biometric | |||
|
Caters for timers and time zones, limiting access and users to different times of the day | ||
|
Provision for Anti-passback, Automatic Lock Release Time Zone and Automatic PIN Disable Time | ||
| Zone | |||
|
Operation mode: Card, Card + PIN, PIN (20-set, 4-6 digits) | ||
|
Firmware can be updated in-circuit, through the serial download from the PC | ||
|
Equipped with a calendar clock chip to give an accurate date and time | ||
|
Battery back-up for internal data storage and time clock | ||
|

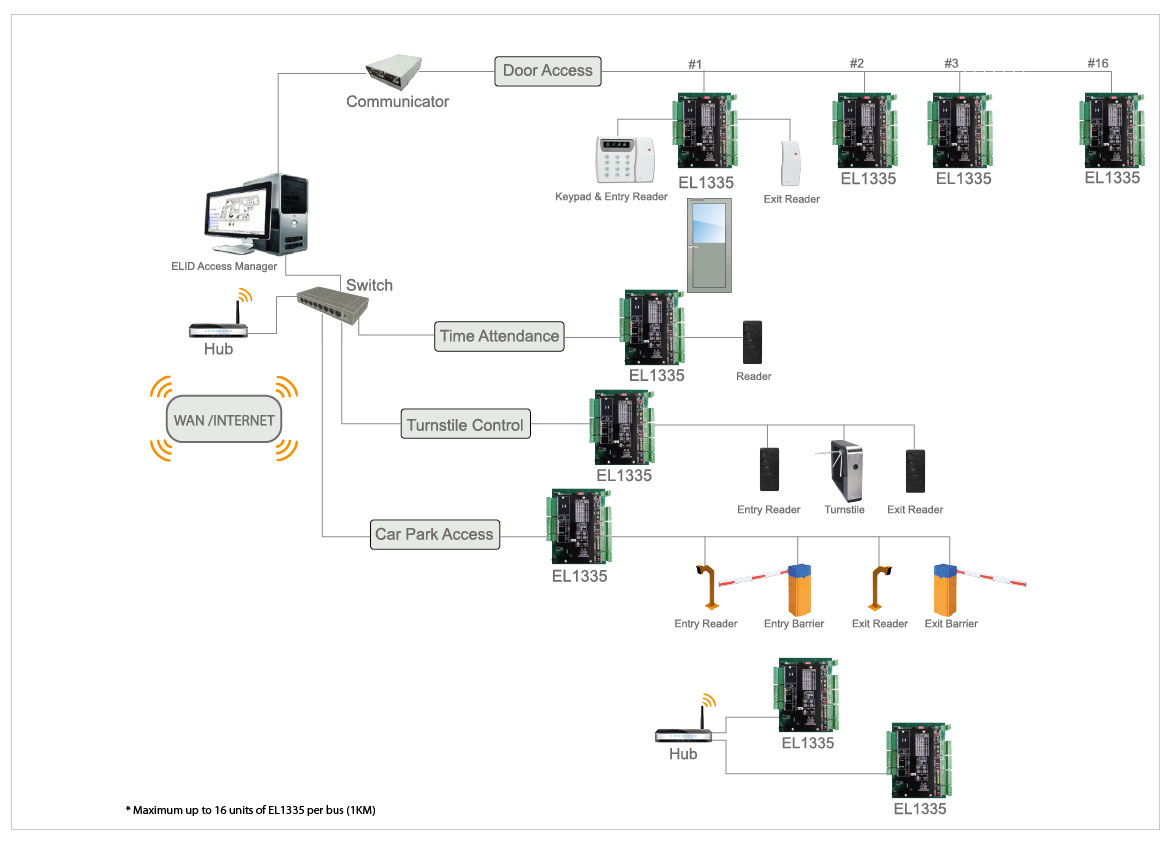

Communication interface: Multi-drop or RS485 or TCP/IP (requires additional LAN module) | ||
|
Dimensions: 130(H) x 133(W) mm | ||
 Download Brochure |
|||
Specification
| Communication Interface | Multi-drop or RS485 or TCP/IP (Optional LAN module) |
| Output | 3 |
| Input | 6 |
| Power Supply | 12 VDC |
| Current Consumption | 0.5A |
| Card Database | 3,000 |
| Transaction Database | 2,000 |
| Card Format | Wiegand 26-bit, Free Wiegand |
| Operation Mode | 3 (Card, Card + PIN, PIN) PIN Only mode: 20 sets |
| Time Zone | 10 |
| Timer | 24 |
| Holiday | 20 |
| Adjustable Lock Release Time | Yes |
| Permanent Lock Release | Yes |
| Automatic Pin Disable Time Zone | Yes |
| Automatic Lock Release Time Zone | Yes |
| Inhibit Access | Yes |
| Continuous Swiping | Yes |
| Anti-Passback | By reader |
Ordering Information
| Product Code | Description |
| Controller Unit | |
| EL1335002D | EL1335D Single-Door Security Access System, 12VAC operation (w/o LAN Module, PSU & Housing) - DIN mount |
| EA0079002 | EA79B LAN Module built-in with RJ45 socket, support 100M |
| EA066A001 | EA66A WIFI Module for EL1335 & EL23XX |
| Accessories | |
|
EP0042003
|
EP42S Power Supply, 12V/4.2A Switching c/w PS2D Low Volt Cut-off |
|
CS1128DX
|
Metal Casing with DIN Rails for EL1335D, EL2305D, EL2306D & PSU - 302(H)x360(W)x85(D) mm
|
| Converter/ Communicator |
|
| EL070S001 | EL70S Converter, RS485 to USB |
|
EL070Q001
|
EL70Q Communicator, Multidrop/RS485 to USB |
