| Product |
| Product Code |
SBGMACF01 |
| Description |

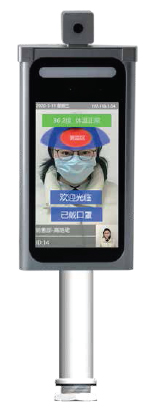

C28 Face recognition with temperature detection, 7" display, 30K faces |
| OS |
Embeded Linux system |
| Screen |
| Size |
7” IPS infinity display |
Luminance
|
450 Lux |
| Resolution |
1024 x 600 |
| Ratio |
9 : 16 |
| Camera |
Resolution
|
2.0MP (1920 x 1080) |
Sensor
|
1/2.7” low illumination CMOS sensor |
| Lens |
HD F ixed 3.9mm (F2.2) |
| White Balance |
Auto , low color temp, high color temp, Manual |
| WDR |
D-WD R & Real WDR |
| LED |
RGB (Natural Light) & IR LED |
| Temperature Detection |
Temperature measurement range
|
30ºC ~ 45ºC |
| Temperature measurement distance |
0.15M ~ 0.4M |
| Temperature measurement accuracy |
±0.3ºC |
| Voice Alert |
Abnormal Temperature Alarm |
| Face Detection & Capture |
| Detection Angle |
Tilt: 9 0 degree ; Pan: 53 degree |
| Face library |
30,000 face library |
| 1 : N Face R ecognition |
≤ 0.2s/person, the recognition accuracy is greater than 99%, under the condition of error rate of 0.03% |
| Stranger detection |
Support |
| Identify distance |
0.3m -2.0m |
| Identification Parameter Setting |
Black and white list, detection sensitivity, comparison threshold, area protection, face frame switch |
| Port |
| Network |
10/100M Network adaptive, RJ45 interface |
| Audio |
1 audio output |
| Serial |
RS232 serial |
| Relay output |
1 Relay Out |
| Wiegand |
Bare wire, * (D0, D1, GND) support wigan 26, 34, 3 (D0, D1, GND) |
| Reset |
Bare wire, 2* (short reset: restore s factory Settings) |
| General |
| Power |
DV12±30% |
| Power Consumption |
≤ 20W |
| Work Temp. & Humidity |
Temp.: -30ºC to +70ºC humidity: 10 to 90% RH (Optional heater at low temperature) |
| Level of Protection |
IP67, IK08, 8KV Surge protection |
| Install Type |
Turnstile installation, wall mounte d installation |
| Size (mm) |
248.3mm (L) x 126.9mm (W) x 26 .6mm (Thickness) |
