Access Controller
 |
EL363 | ||
| Compact Controller | |||
| EL363 is a single-door compact controller comprising access controller, card reader and keypad, designed to work independently. Multiple units can be connected together such that programming and report generations are handled through a PC running an ELID access management software. | |||
 |
Storage capacity: Stores up to 4,000 user-IDs and 1,000 offline transactions | ||
|
Display and keypad: LED 7-segment display and 12-key keypad | ||
|
Built-in EM card reader module | ||
|
Reading range: 3 - 8cm | ||
|
Caters for timers and time zones, limiting access and users to different times of the day | ||
|
Optional EZ5 Remote Relay Module for added security whereby inputs and outputs are embedded on a | ||
| separate module placed in a secure area | |||
|
Firmware can be updated in-circuit, through the serial download from the PC | ||
|
Equipped with a coin battery for real time clock back-up time up to a year | ||
|
Communication interface: RS485 or Multi-drop (requires additional converter) or TCP/IP (requires | ||
| additional LAN module) | |||
|
Dimensions: 110(H) x 90(W) x 35(D) mm | ||
 Download Brochure |
|||
Specification
| Communication Interface | RS485 or Multi-drop (requires additional converter) or TCP/IP (requires additional LAN module) |
| Output | 1 (On-board), 2 (with EZ5) |
| Input | 2 (On-board), 3 (with EZ5) |
| In Reader | Built-in |
| Power Supply | 12 VDC |
| Current Consumption | 0.5A |
| Card Database | 4,000 |
| Transaction Database | 1,000 |
| Card Format | Wiegand 26-bit, Free Wiegand |
| Operation Mode | 3 (Card, Card + PIN, PIN) |
| Time Zone | 10 |
| Timer | 24 |
| Holiday | 20 |
| Adjustable Lock Release Time | Yes |
| Permanent Lock Release | Yes |
| Automatic Pin Disable Time Zone | Yes |
| Automatic Lock Release Time Zone | Yes |
Configuration
| EL363 Standalone Configuration |
 |

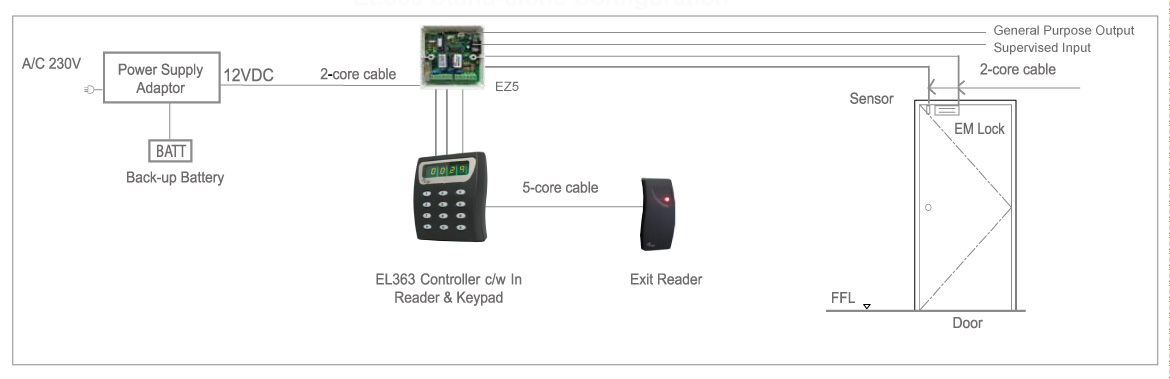

| EL363 Secure-Mode Standalone Configuration |
 |
|
EL363 System Configuration
|
 |
Ordering Information
| Product Code | Description |
| Controller Unit | |
| EL0363B02 | EL363E/B (R2) Single-Door Security Access System with built-in EM Reader Module |
| EDZ005M02D | EZ5D Remote Relay – DIN mount |
| EA0079004D | EA79TD LAN Module, support 100M - DIN mount |
| EA066B001 | EA66B WIFI Module for EL363 |
| Accessories | |
|
EP0042003
|
EP42S Power Supply, 12V/4.2A Switching c/w PS2D Low Volt Cut-off |
|
CS1056DX
|
Metal Casing with DIN Rails for Accessories & PSU - 256(H)x285(W)x74(D) mm
|
| SBPOES003 | POE Splitter 12V/2A, support 10/100M |
| Converter/ Communicator |
|
|
EA0024002D
|
EA24D Converter (TTL to Multidrop) - DIN mount |
| EL070S001 | EL70S Converter, RS485 to USB |
|
EL070Q001
|
EL70Q Communicator, Multidrop/RS485 to USB |
