ER301 |
| |
Fingerprint Reader |
| |

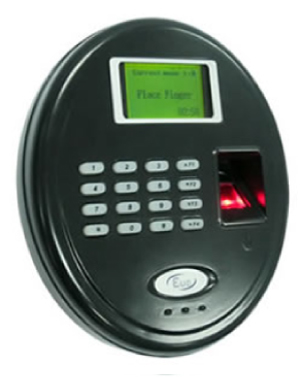

ER301 is a high performance optical fingerprint reader with built-in EM reading module. ER301 captures and stores fingerprint images to be used as templates to verify each specific finger's unique ridge pattern. ER301 is compatible with all ELID access controllers which provides you a total access management system. |
| |
 |
Storage capacity: 9,000 fingerprint templates, 100 cards
|
| |
|
Enables enrollment of up to 10 fingerprints for each user |
| |
|
Built-in card reading module (EM/MIFARE/HID, depending on the type of card reader used)
|
| |
|
Displays transaction code (eg: Invalid card, Invalid time zone) |
| |
|
Multiple verification mode: 1:N or 1:1 |
| |
|
Fast verification time |
| |
|
Large backlight graphical LCD display |
| |
|
Non-volatile EEPROM memory for data storage
|
| |
|

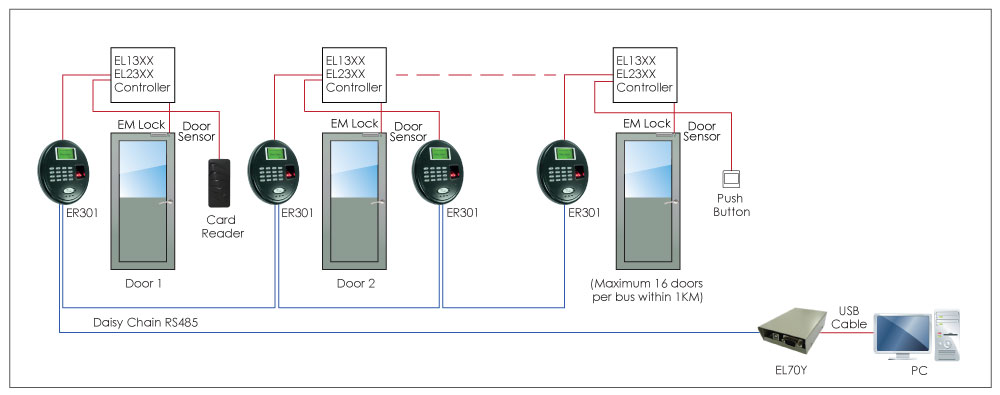

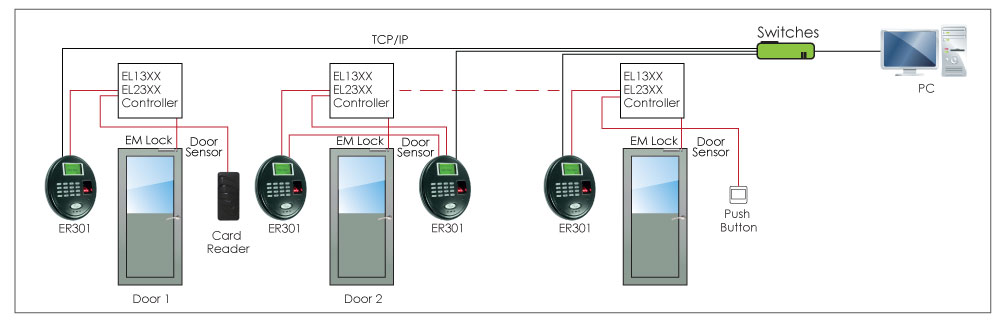

Communication interface: RS485 or TCP/IP |
| |
|
Dimensions: 180(H) x 150(W) x 50(D) mm |
